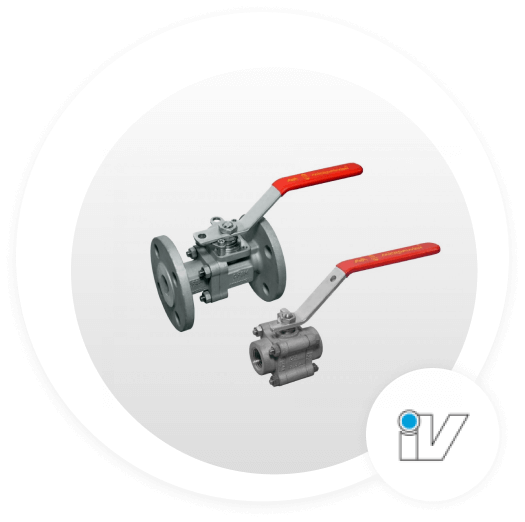

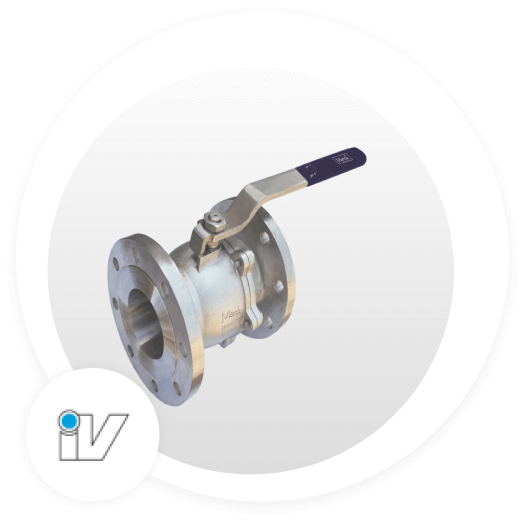

The IV range of floating valve incorporates unique design features to provide a rugged construction, reliable operation and long service life. It is suitable for normal to most demanding applications covering wide segment of process industries such as chemical, petrochemical, pharma, steel, alumina, power plants and common utilities. An ideal valve for the flow isolation and ON / OFF duty.
V Ball valves come with double body & stem seal to ensure reliable sealing. Valves can be provided with special features like, Locking arrangement, Special cleaning for oxygen service, Extended stem / bonnet, Vacuum service, Jacketing, Fire safe construction etc.
Valves can be provided with Gear box / Pneumatic actuator / Electric actuator wherever required.

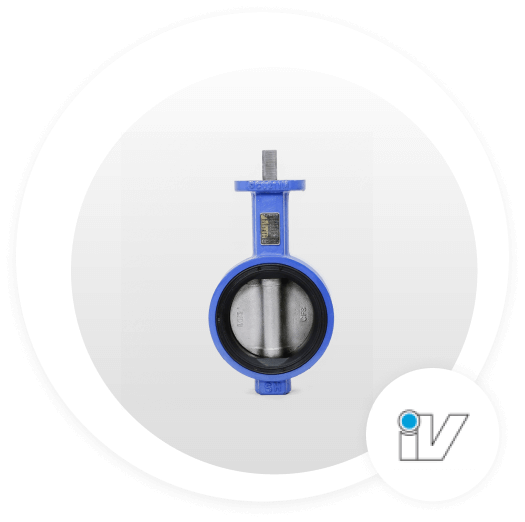

A real workhorse from the IV stables, IVGK model Butterfly valve incorporates the optimum design features to provide long trouble free service in the field. This general purpose soft seated Butterfly valve has a fully rubber lined single piece body with centric disc construction and is available in wafer type body pattern.
The body liner which also functions as the soft seat, comes in either a replaceable version or an integrally molded (bonded) version and offers 100 % bi-directional sealing against vacuum to rated pressure of PN10 or PN16.
The wafer style body has universal design to fit between pipe flanges of almost all popular flange standards.

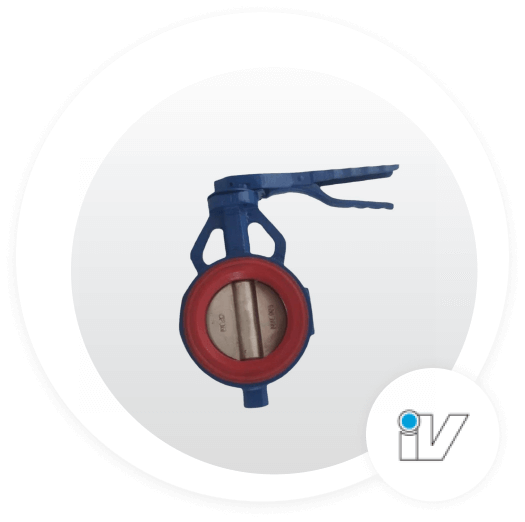

Intervalve's PTFE lined Butterfly valve model IVTFE provides an optimum solution to the corrosion problems encountered by the chemical process industries with conventional Butterfly valves. The PTFE seat liner covers the entire wetted surface of the body and extends on to the flange contact faces, thus eliminating possibility of any media contact with the body metal.
The circularly moulded full back up elastomer and live loaded disc shoulder sealing ensures bubble tight closing of the Valve with zero shaft leakage. The valve is adaptable for ON / OFF as well as control duty and can be fitted with actuators and accessories as required to meet the specific duty conditions.

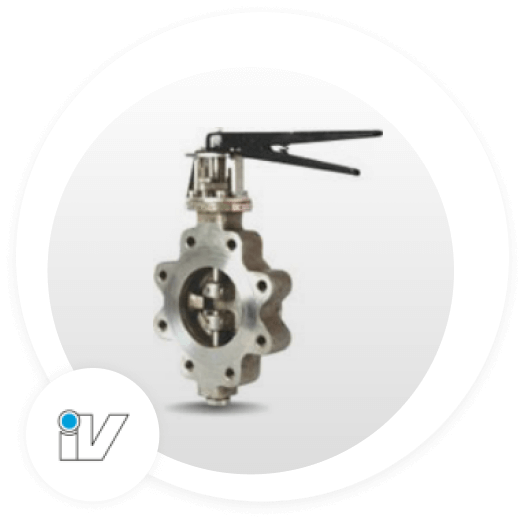

The ultimate in high performance Butterfly valves, IV's IVEX - series incorporates the 'state of the art' valve technology to out perform the competition. The double offset disc design nearly eliminates the seating wear due to the camming action of the disc during closing. The mechanical stopper provided on the valve body ensures precise valve closing every time to ensure specified seat tightness. The disc has a spherical profile and comes out of contact with seat in the initial opening itself.
The valve is available with 3 distinctly different seat design versions, viz. Soft seated, Fire safe and Metal to Metal seated with wafer or wafer lugged body option.
The valve has excellent throttling characteristics with good low flow control capability, which offers an inherently higher rangeability. This feature of IVEX series makes them ideal for the flow control / modulating duties. The fire safe version, IVEX - F model has been fire tested and certified as per the requirements API 607 standard by Lloyd's Register of Shipping & API 607 Edn. V by Bureau Veritas and TUV.

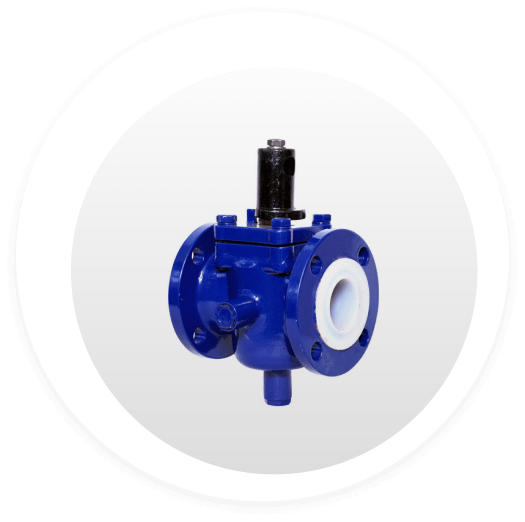

HORIZON fully high performance ball valves are engineered for reliable isolation and control of extremely corrosive, hazardous and high purity process liquids and gases. Designed using industry's pertinent specification as a minimum requirement, HORIZON valve incorporate the highest standards of fundamental engineering principles, quality and safety that are essential in assuring reliable performance. Designed in accordance with ANSI 16.10 lb face to face dimensions, HORIZON valves are routinely used as direct replacments for massive, high torque and difficult to maintain plug, gate and ball valves. The low torque feature, which has been tested to be as much as 66% less than in lined plug valves result in easier manual operation, reduced priping stress and considerably lower automation cost.

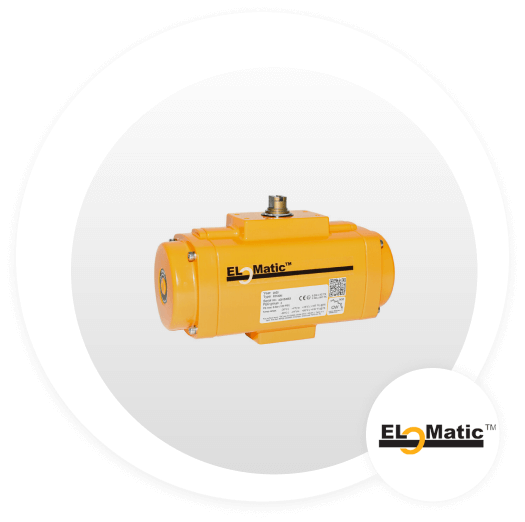

We, Mascot Dynamics Pvt Ltd, are the Authorized Valve Automation Centre (VAC) for INTERVALVE Poonawalla Ltd & El-O-Matic India Pvt Ltd for their Ball Valves, Butterfly Valves, Pneumatic Actuators & Automation Systems.
Mascot Dynamics Pvt Ltd has extensive knowledge and experience in the automation of various types of valves & actuator combinations. Enabling us to better serve our customers and ultimately save your time and money. We are continually working with our manufacturing partners to keep pace with the latest technologies and practices to make sure we supply valve assemblies duly tested for flawless performance.
We can produce any actuated valve assembly in-house. We help customers develop tailor-made solutions. We are constructing a unique assembly using the same components that we stock for basic valve automation, or source specialty valves that are hard to find, we will work closely with you to develop the best possible solution. After development is completed, we will build, test and deliver the approved automated valve assemblies.
With our extensive experience in the Valve & Valve Automation business, we are ready to supply On-off Valve assemblies for your projects / Small modifications in short lead times, at competitive pricing with best quality & Services. We are keeping standard range of Ball Valves (1/2” to 4”, 150#, CS & SS material) and R&P Pneumatic Actuators in stock. We have kept required accessories like Limit Switches, Air Filter regulators, pneumatic fittings & tubing in stock.
